PEDIATRIC ADVANCED LIFE SUPPORT SIMULATOR

KEY FEATURES

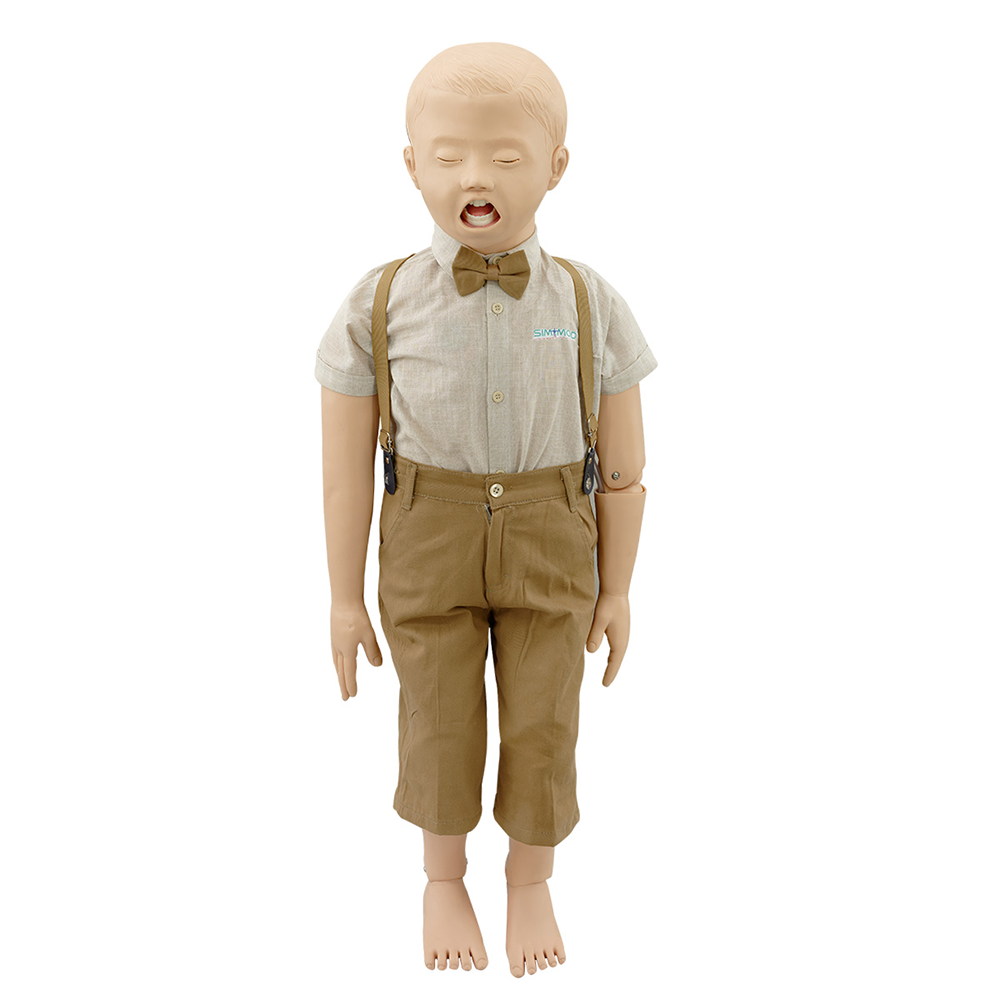

5-Year-Old Child

• 6 hours of battery life
• Rechargeable
• Wireless control
• 7”/10” tablet provided as control panel
• Articulated joints in the neck, jaw, shoulder, hip, and knee for easy mobility
• Anatomical features such as oral cavity, tongue, teeth, glottis, epiglottis, trachea, esophagus, right and left lungs, and stomach
• One-way valve system that ensures the air given to the manikin flows in a single direction, effectively preventing any backflow
• A steel spring system designed to provide realistic chest compression during CPR while preventing collapse during application

GENERAL APPLICATIONS

1. The simulator can be voice-activated through the control panel for realistic anamnesis practice.

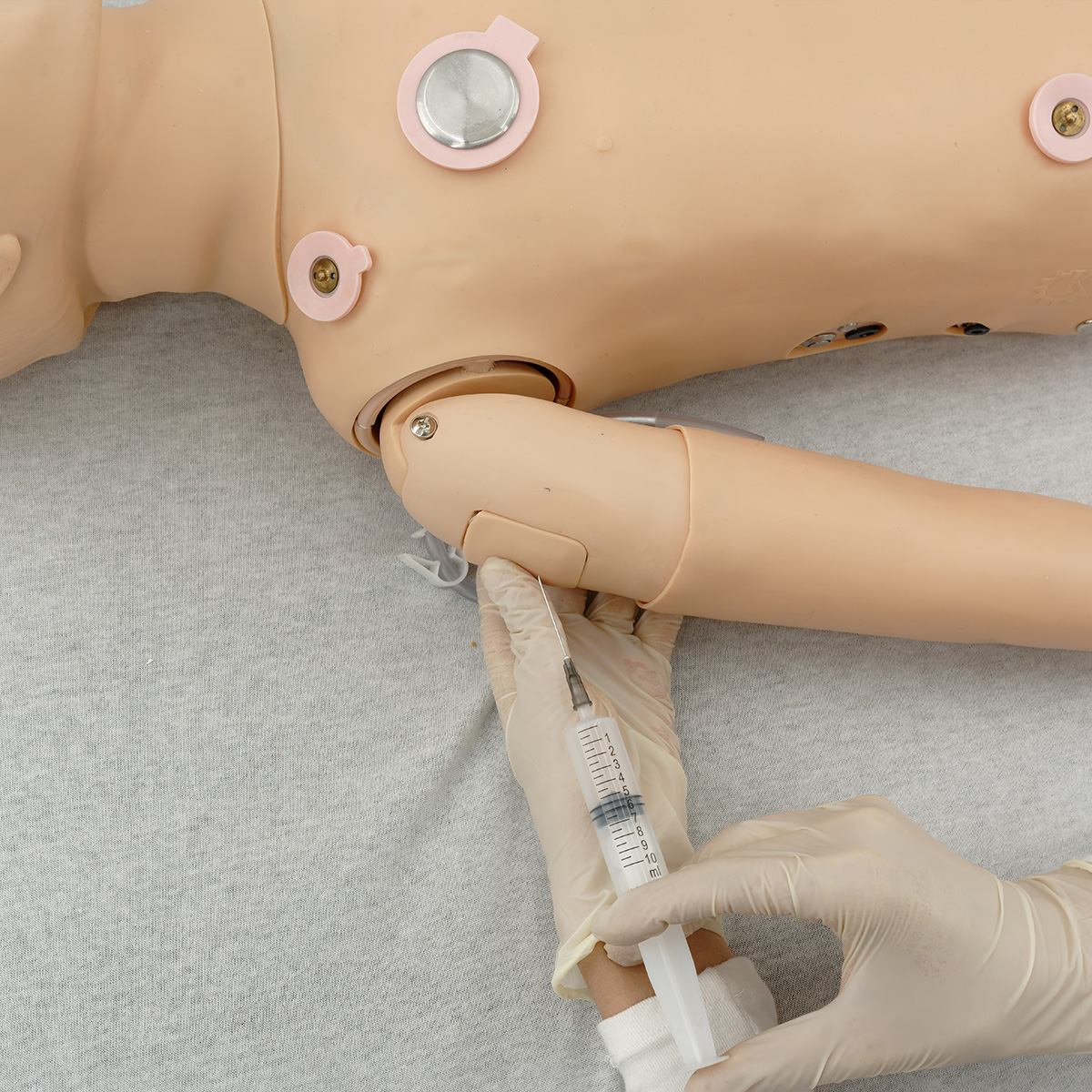

2. Bilateral IV puncture, injection, transfusion, and blood drawing procedures through the basilic and cephalic veins in the anterior forearm and the dorsal surface of the hand.
3. IM injection into the deltoid muscle of the upper arm.

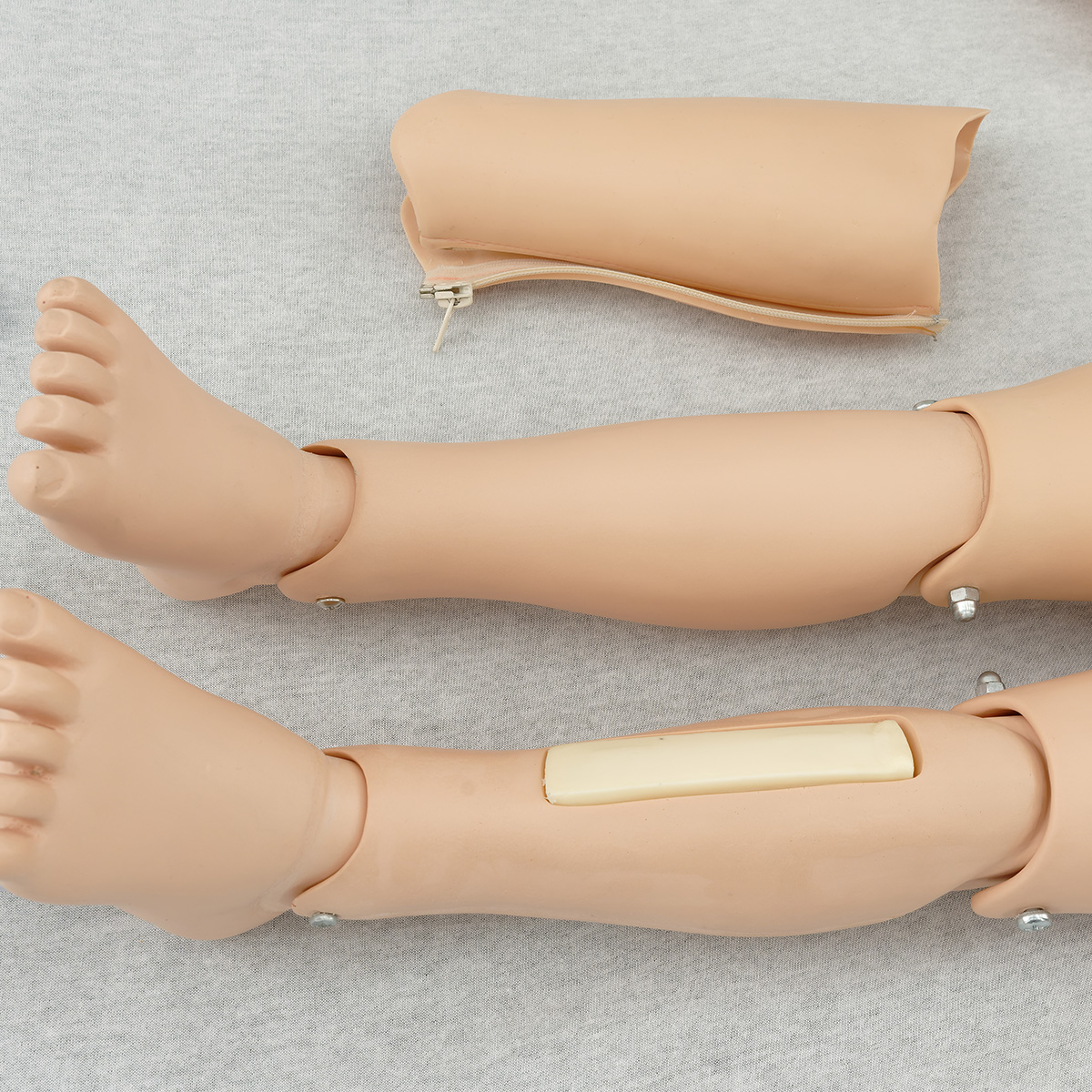

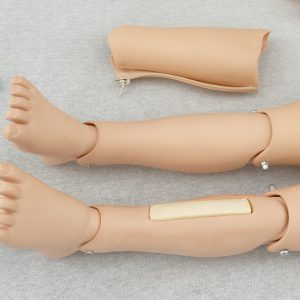

4. Intraosseous infusion (IO) procedure on the left leg.

AIRWAY MANAGEMENT

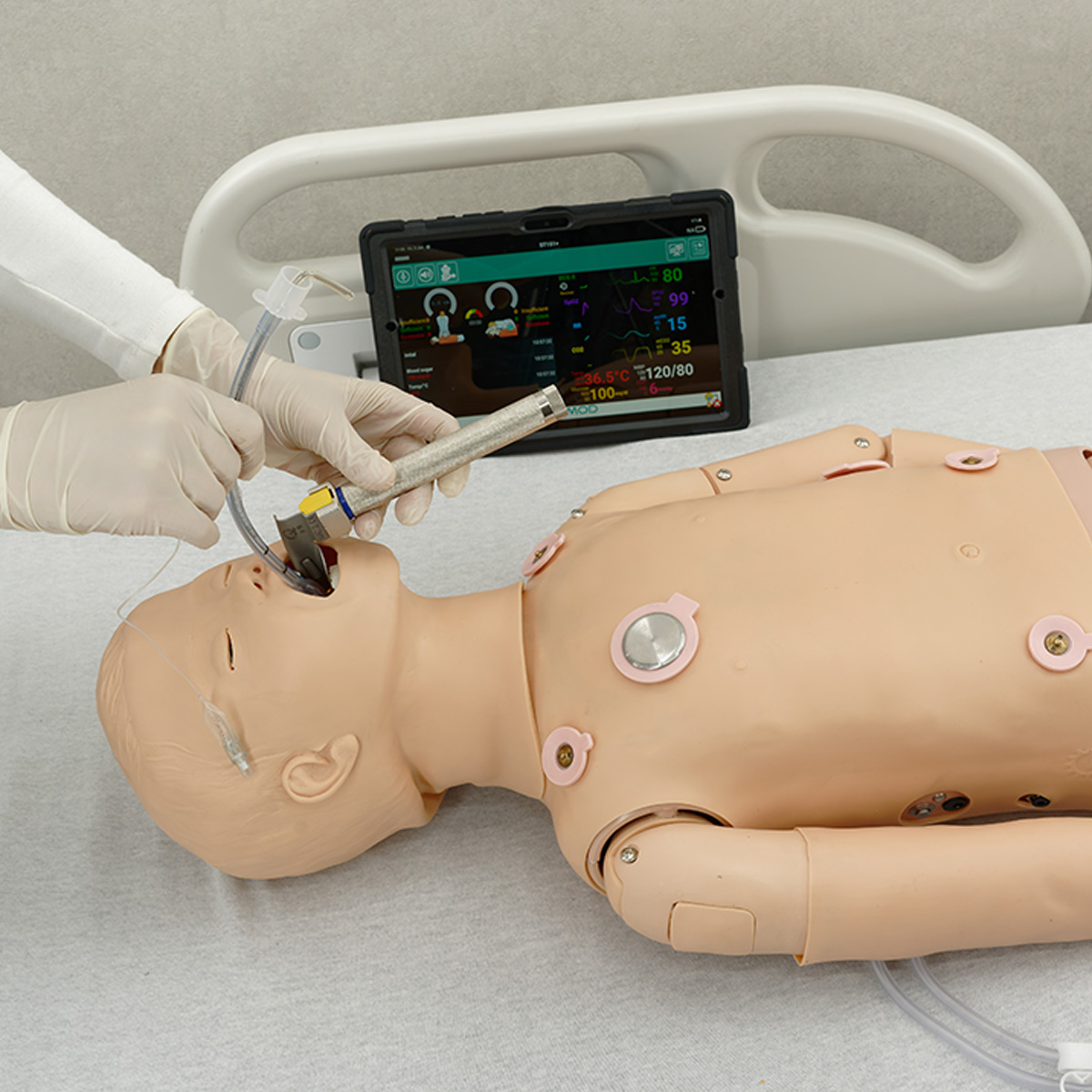

1. Oral and nasal endotracheal intubation.
2. LMA, LTA, and Combitube applications.
3. During endotracheal intubation, the control panel monitors the correct placement of the endotracheal tube within the trachea while detecting accidental insertion into the right bronchus or esophagus. *

* This feature is available exclusively for the ST-151+ model.

	ST/151	ST/151+
RECHARGEABLE	✓	✓
WIRELESS CONTROL	✓ 7” TABLET	✓ 10” TABLET
CPR	✓	✓ INSTANT FEEDBACK
ANAMNESIS SIMULATION	✓	✓
ECG & DEFIBRILLATION	✓	✓
PULSE SYNCHRONIZED  WITH  ECG	RIGHT FEMORAL	RIGHT FEMORAL & CAROTID
INTUBATION	✓	✓ ELECTRONIC DETECTION OF TUBE POSITION
IV- IM INTERVENTION ON BOTH ARMS	✓	✓
IO INTERVENTION ON THE LEFT LEG	✓	✓
FEEDBACK REPORTS FOR CPR AND INTUBATION PRACTICES		✓

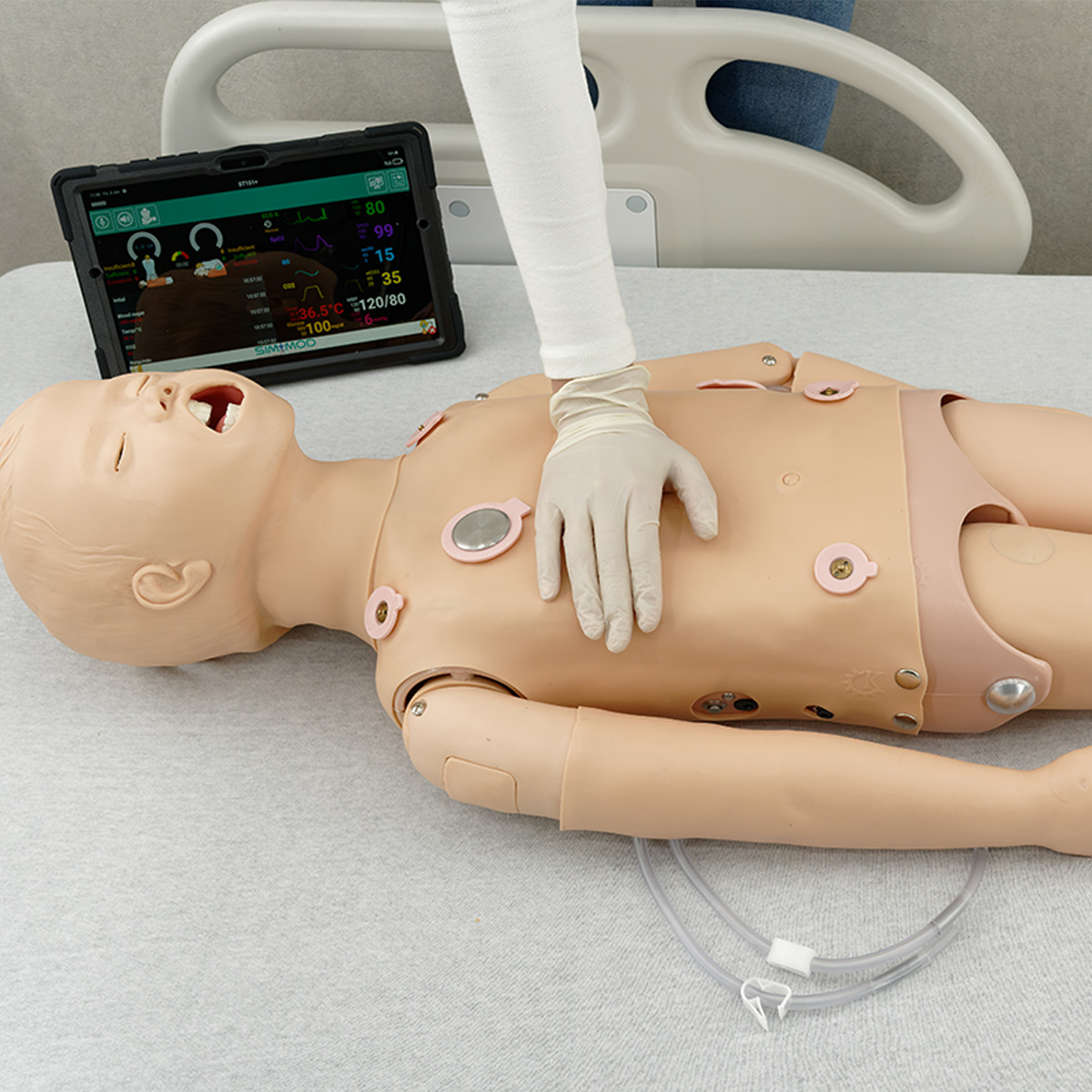

 CPR AND CARDIOLOGY PRACTICES

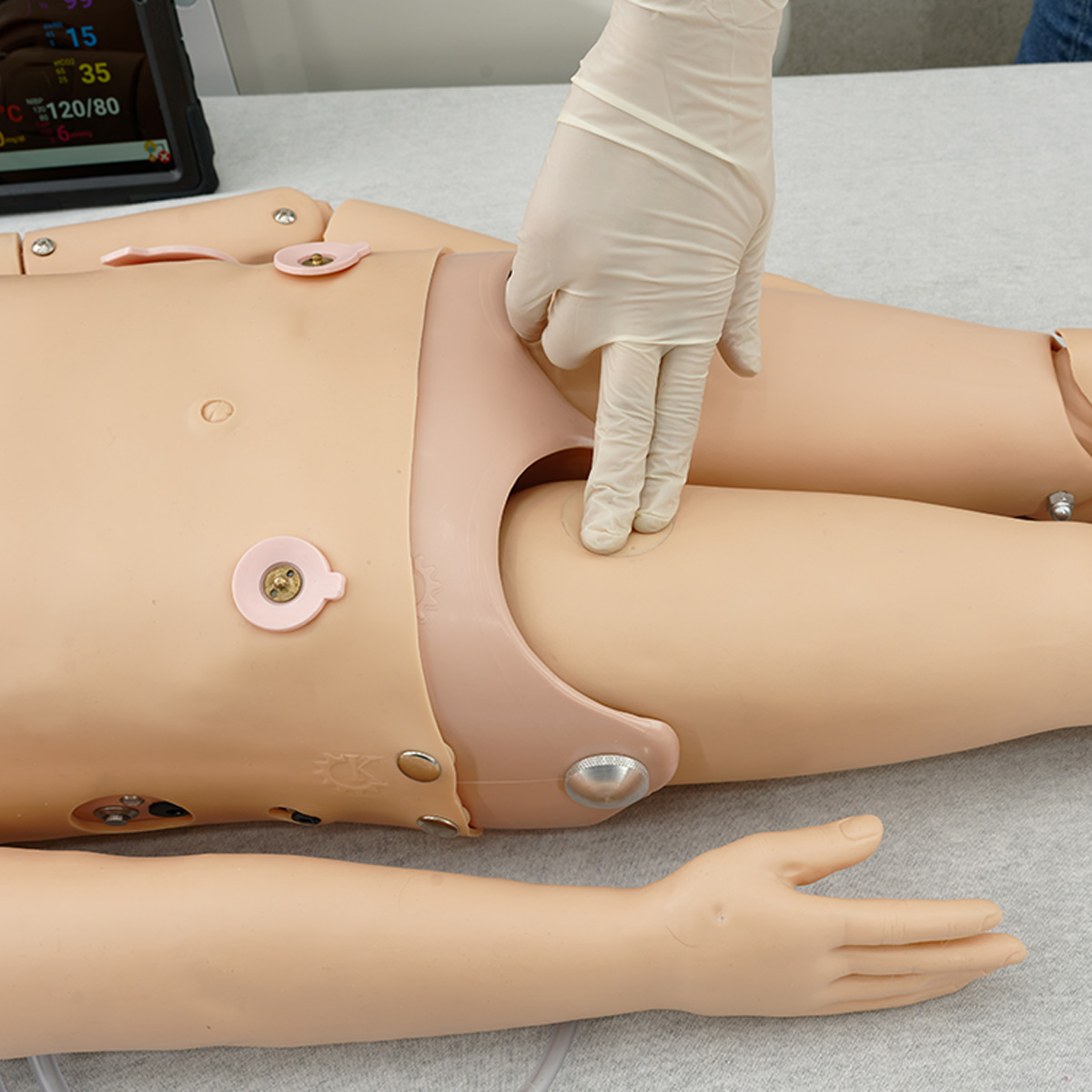

1. The femoral pulse is synchronized with the selected ECG rhythm.

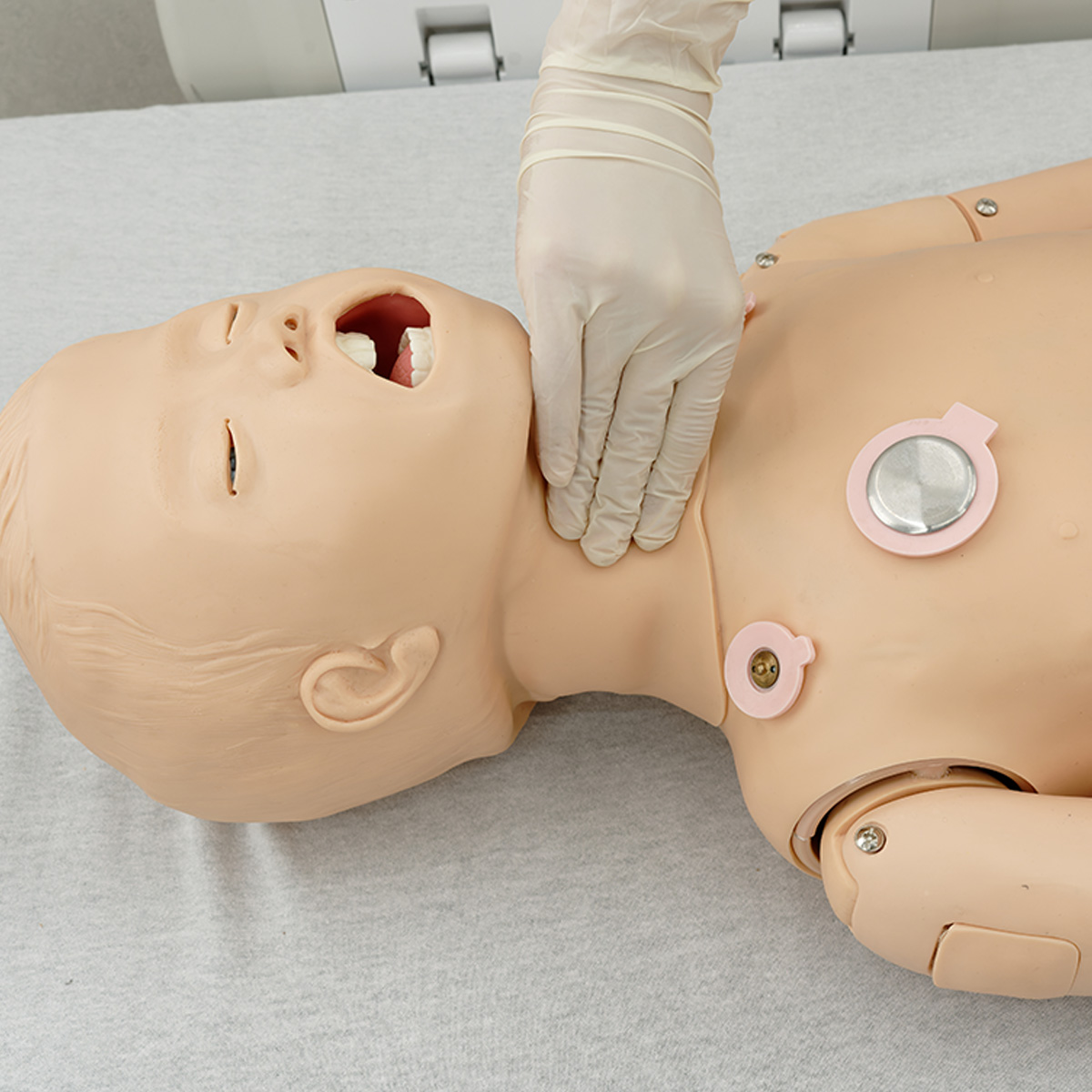

2. The carotid pulse is synchronized with the selected ECG rhythm. *

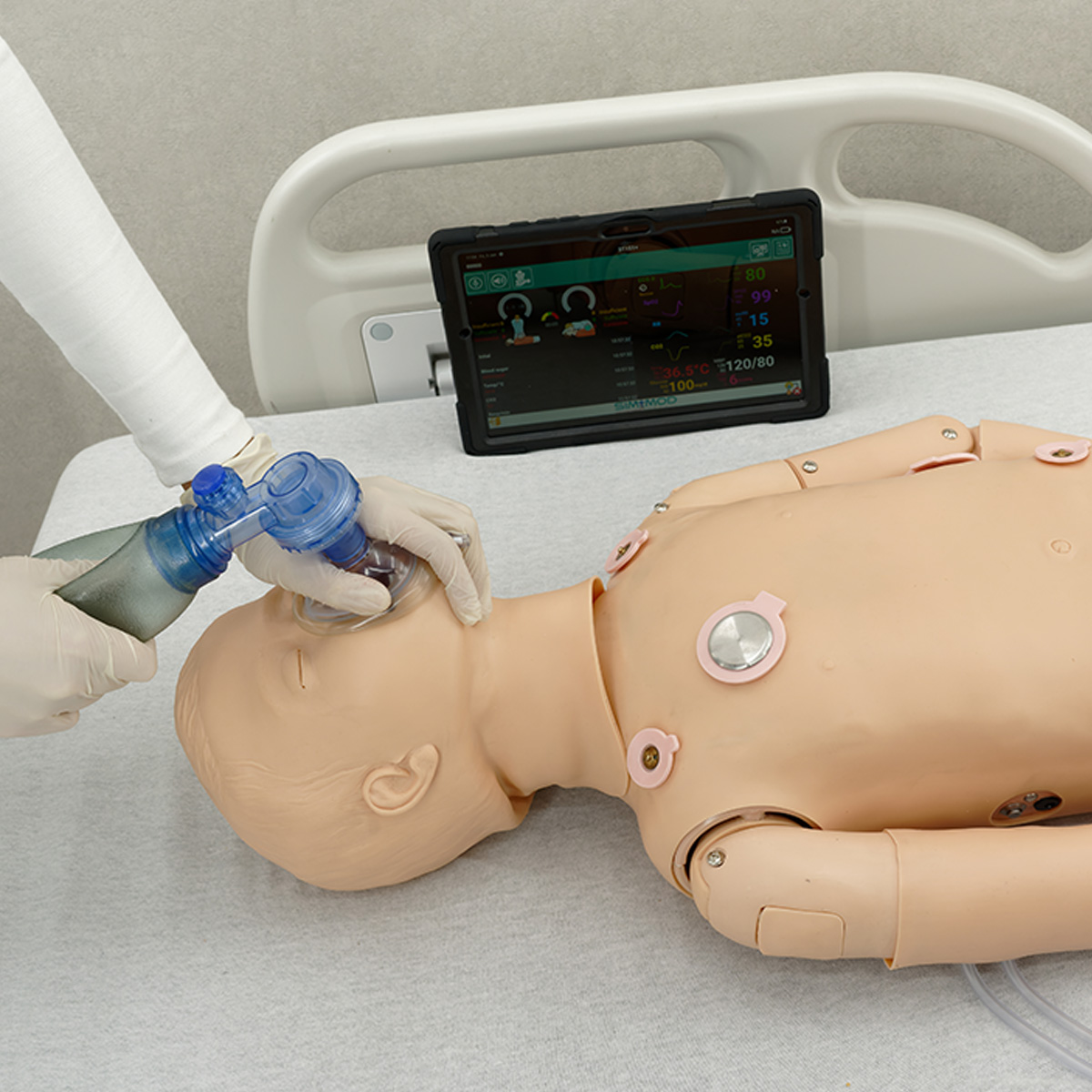

3. Artificial respiration can be performed through mouth-to-mouth, mouth-to-nose, or bag-valve-mask ventilation with a realistic chest rise.
4. Realistic bilateral and unilateral chest rise.
5. Monitoring CPR practices and ensuring proper execution of airway opening procedures through the control panel. *
6. Forty-three distinct ECG rhythms, each with adjustable heart rates controlled through the control panel, can be displayed utilizing four ECG leads.
7. Real defibrillation, cardioversion, pacing, and AED applications can be safely performed on the model using an actual defibrillator, AED, and bedside monitor. The model is equipped with secure defibrillation (shock) points, ensuring the safety of the procedures.

* This feature is available exclusively for the ST-151+ model.
